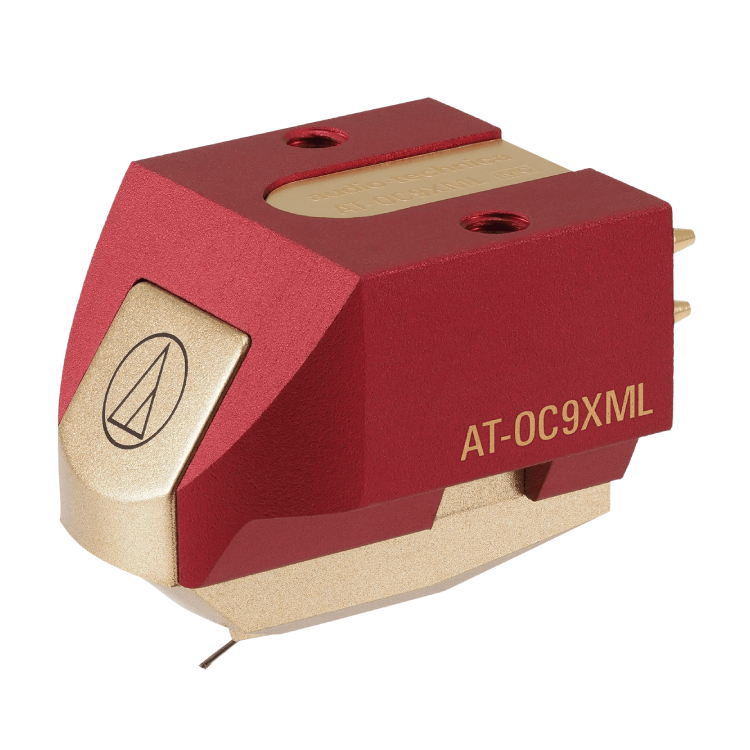

Audio-Technica AT-OC9XML
The AT-OC9XML is a Reference-tier OC9 Series moving coil cartridge, pairing a MicroLinear nude stylus with a 0.28mm nude boron cantilever for exceptional tracking precision and high-frequency extension.
- SKU: AT-OC9XML
- Brands: Audio Technica
- Cartridge type: moving coil
The AT-OC9XML sits at the top of the OC9 Series lineup, built around a MicroLinear nude stylus mounted on an ultra-rigid 0.28mm nude boron cantilever. This pairing minimizes effective tip mass for outstanding transient response and reduces distortion at high frequencies, while the dual moving coil generator and PCOCC copper coil wire deliver a natural, richly detailed tonal balance.
With an output voltage of 0.4 mV and a recommended minimum load impedance of 100 ohms, the AT-OC9XML requires a dedicated MC phono stage or step-up transformer. Frequency response extends to an impressive 47,000 Hz with 27 dB of channel separation at 1 kHz, capturing extraordinary detail across and beyond the audible range.
As a Reference-tier model in the OC9 Series, the AT-OC9XML is engineered for listeners seeking the highest level of resolution and musicality this product line has to offer, standing alongside the AT-OC9XSH and AT-OC9XSL as the series' flagship offerings.
Output Voltage: 0.4 mV (1 kHz, 5 cm/sec)
Frequency Response: 20-47,000 Hz
Channel Separation: 27 dB (1 kHz)
Load Impedance: Min. 100 ohms (head amp)
Vertical Tracking Force: 1.8-2.2g (2.0g standard)
Stylus: MicroLinear (Nude square shank)
Cantilever: 0.28mm Nude Boron
Body: Aluminum
Mounting: 1/2" Standard Mount
Series: OC9 Series
Level: Reference
- Cartridge body
- Mounting screws & nuts
- Stylus guard
- Premium storage case
- Instruction manual
