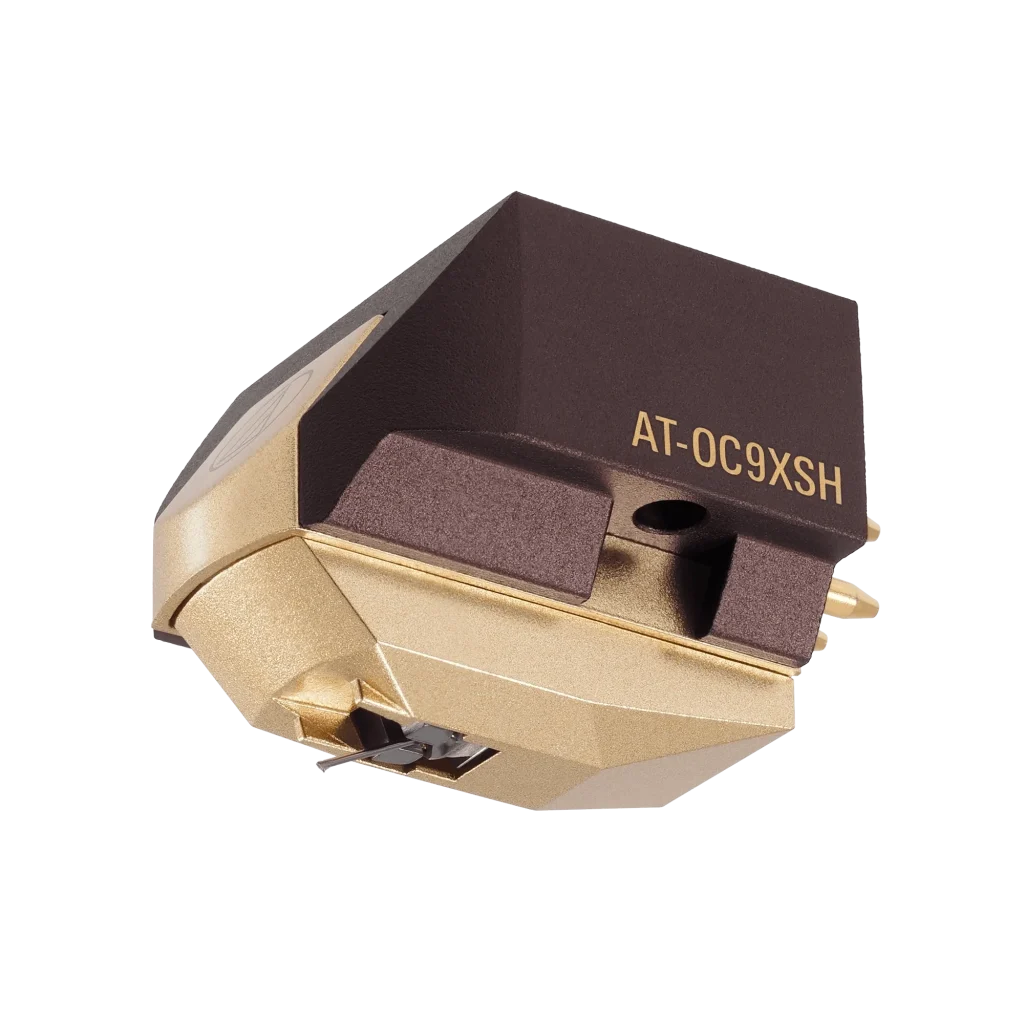

Audio-Technica AT-OC9XSH
The AT-OC9XSH is a Reference-tier OC9 Series moving coil cartridge, fitted with a nude Shibata stylus and 0.28mm nude boron cantilever for refined, low-distortion tracking across a wide frequency range.
- SKU: AT-OC9XSH
- Brands: Audio Technica
- Cartridge type: moving coil
The AT-OC9XSH pairs a nude Shibata stylus with a rigid 0.28mm nude boron cantilever, minimizing effective tip mass for precise groove tracing and reduced distortion. Its dual moving coil generator and PCOCC pure copper coil wire deliver a smooth, richly detailed tonal character consistent with the OC9 Series' Reference-tier models.
With an output voltage of 0.4 mV and a recommended minimum load impedance of 100 ohms, the AT-OC9XSH requires a dedicated MC phono stage or step-up transformer. Frequency response extends to 47,000 Hz with 27 dB of channel separation at 1 kHz, delivering exceptional resolution and extension beyond the audible range.
As a Reference-tier model in the OC9 Series, the AT-OC9XSH stands alongside the AT-OC9XML and AT-OC9XSL as one of the line's flagship offerings, suited to listeners who demand the highest level of tracking accuracy and tonal refinement.
Output Voltage: 0.4 mV (1 kHz, 5 cm/sec)
Frequency Response: 20-47,000 Hz
Channel Separation: 27 dB (1 kHz)
Load Impedance: Min. 100 ohms (head amp)
Vertical Tracking Force: 1.8-2.2g (2.0g standard)
Stylus: Shibata (Nude square shank)
Cantilever: 0.28mm Nude Boron
Body: Aluminum
Mounting: 1/2" Standard Mount
Series: OC9 Series
Level: Reference
- Cartridge body
- Mounting screws & nuts
- Stylus guard
- Premium storage case
- Instruction manual
