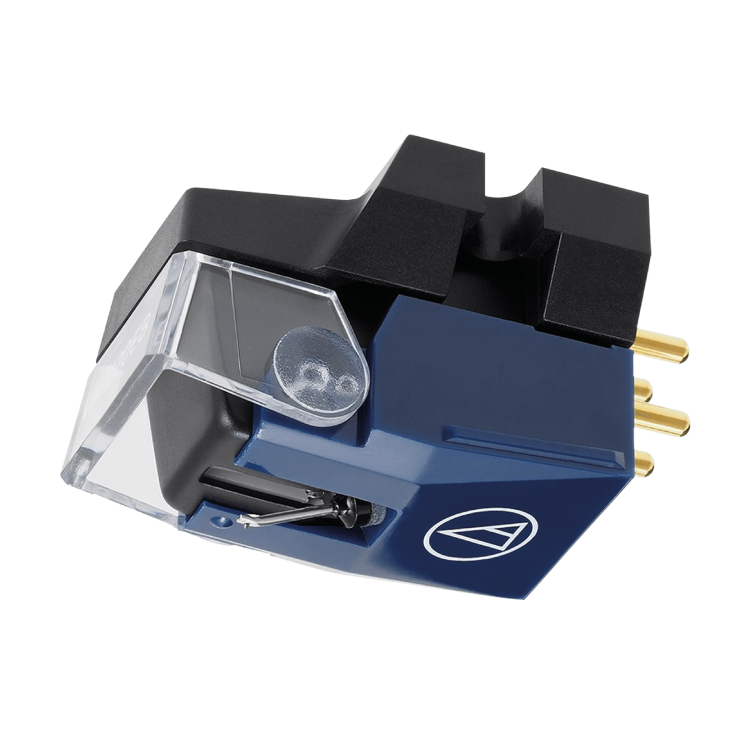

Audio-Technica VM520EB Dual Moving Magnet Phono Cartridge (Elliptical, Bonded)
The VM520EB steps up to a bonded elliptical stylus within Audio-Technica's VM500/600/700 Series, delivering more accurate groove tracking and better high-frequency detail than the entry-level conical models.
- SKU: VM520EB
- Brands: Audio Technica
- Cartridge type: moving magnet
The Audio-Technica VM520EB moves up to a bonded elliptical stylus, a smaller and more precisely shaped tip than the conical styli used on entry-level VM500 Series models. The elliptical profile makes better contact with the groove walls, improving high-frequency response and tracking accuracy while keeping the same dual moving magnet platform.
The cartridge uses an aluminum cantilever and a low-resonance polymer body with a center shield plate to reduce crosstalk between channels, along with a paratoroidal coil design for improved efficiency. Threaded inserts allow simple two-screw mounting to any standard 1/2" headshell.
Ideal for turntables using a standard 1/2" mount tonearm, and a solid mid-tier choice for listeners who want a noticeable step up in detail over an entry-level conical cartridge.
Cartridge Type: Moving Magnet (Dual Magnet)
Stylus: 0.3 x 0.7 mil Elliptical (Bonded)
Cantilever: Aluminum Pipe
Output Voltage: 4.5 mV Nominal (1 kHz, 5 cm/sec)
Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
Recommended Load Impedance: 47,000 ohms
Frequency Response: 20-23,000 Hz
Channel Separation: 27 dB (1 kHz)
Mounting: 1/2" Standard Mount
Series: VM500/600/700 Series
Level: Mid
- Cartridge body
- Mounting screws & nuts
- Stylus guard
- Instruction manual
