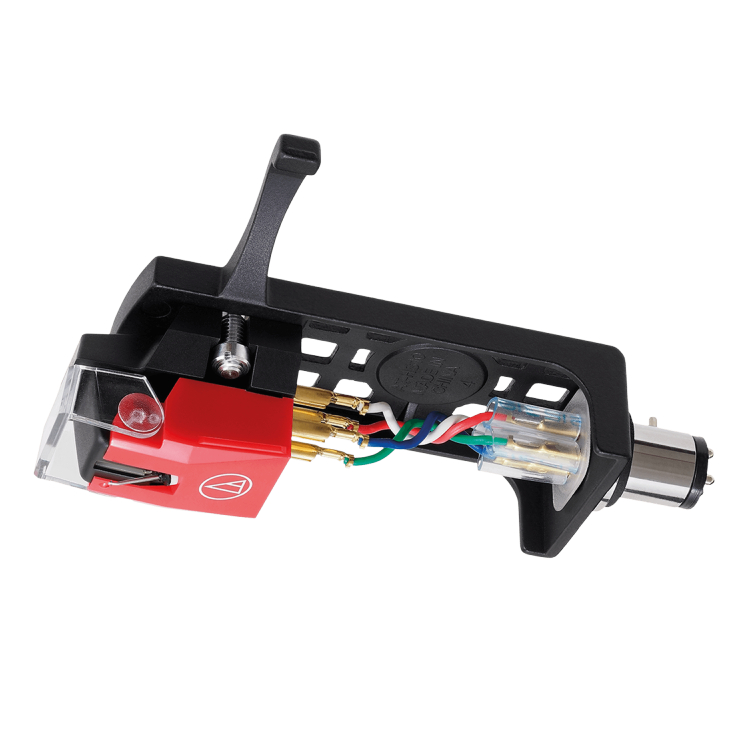

Audio-Technica VM540ML/H
The VM540ML/H pairs the flagship VM540ML cartridge, with its nude-mounted MicroLinear stylus, with a factory-mounted headshell so lead wires and alignment are already handled.
- SKU: VM540ML/H
- Brands: Audio Technica
- Cartridge type: moving magnet
The Audio-Technica VM540ML/H combines the platform's most resolving cartridge with a factory-mounted headshell, giving you the VM540ML's MicroLinear stylus without the hassle of manual cartridge alignment. Its nude-mounted 2.2 x 0.12 mil MicroLinear tip is shaped to more closely match the curvature of the cutting stylus used to master records, maintaining contact with a longer section of the groove wall for lower distortion and more accurate high-frequency reproduction.
Underneath the headshell, the cartridge uses a tapered aluminum cantilever and a low-resonance polymer body with a center shield plate to reduce crosstalk between channels, along with a paratoroidal coil design for improved efficiency.
Ideal for listeners who want the VM500/600/700 Series' best performance in a plug-and-play package, the VM540ML/H drops straight onto any standard 1/2" mount tonearm and delivers the platform's widest frequency response and tightest channel separation with minimal setup effort.
Cartridge Type: Moving Magnet (Dual Magnet)
Stylus: 2.2 x 0.12 mil MicroLinear (Nude)
Cantilever: Tapered Aluminum Pipe
Output Voltage: 4.0 mV Nominal (1 kHz, 5 cm/sec)
Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
Recommended Load Impedance: 47,000 ohms
Frequency Response: 20-27,000 Hz
Channel Separation: 28 dB (1 kHz)
Mounting: Pre-Mounted on Headshell (1/2" Standard)
Series: VM500/600/700 Series
Level: High-End
- Cartridge pre-mounted on headshell with lead wires attached
- Mounting screws & nuts
- Stylus guard
- Instruction manual
